- Place of Origin: china
- Brand Name: Dongtai
- Model Number: BF
- Weight: 5.000 kg
Machine: Pumping Machine
Type: BF peristaltic pump manual pump wfilling machine
Main use

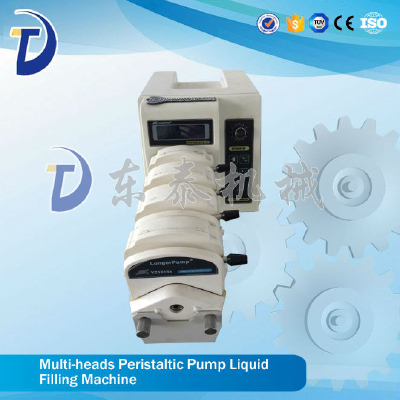

This liquid filling machine is semi-automatic peristaltic pump type liquid filling machine
Widely application. It is usually used in pharmaceutical, cosmetic, food, pesticides and special industries and so on. Especially , this equipment is very suitable for small batch production, lab application, filling various small dose of liquid, such as massage oil, perfume, medicinal liquid, etc.
It will not cause disturbing phenomenon and secondary pollution
This soft tube of equipment is adopted the imported silicone hoses to work, it can be used for filling high corrosive liquid and so on.
- Place of Origin: china
- Brand Name: Dongtai
- Model Number: BF
- Weight: 5.000 kg
Specifications of pumping machine
Speed range: 1 ~ 300rpm, is reversible
Control mode: continuous adjustment of rotary encoder
Display mode: 128*64 type LCD display, can switch between the two modes and speed in the flow
The assigned number: 1 ~ 999
Distribution of liquid volume: 0.1ml ~ 99.9L
Time interval: 1 to 999 seconds
Suction angle: 0 ~ 360 degrees (18 degrees step)
Communication interface: RS485
Control interface: on-off control, direction control, speed control (0 ~ 5V, 0 ~ 10V, 4 ~ 20mA, 0 ~ 10KHz optional)
Application of power: AC 220V 10%, 50Hz/60Hz 10% 110V AC (standard), 50Hz/60Hz (optional)
Power consumption: less than 50 W
Working environment: temperature 0 to 40 DEG C, < 80% relative humidity
Protection grade: IP31
Speed resolution: 1rpm
Drive size: (L * W * H) 202 x 160 x 239 (mm)
Drive weight: 4.3kg
Detachable pump,
safe and reliable,
no noise, no clean,
easy to carry and operate.
