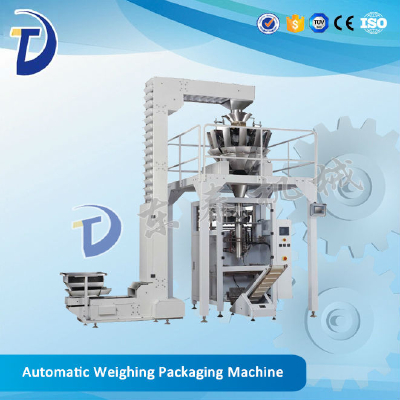

Type: DT-4230 Automatic Granule Packaging Machine
Introduction and Major Characteristics
1.automatic to complete feeding, weighing, filling bag, print date, and the output of products all of the production process
2. high accuracy in measurement, fast efficient, no debris.
3. provincial labour, low loss, easy to operate and maintain.
Scope and Application
Expanded food, potato chips, candy, pistachios, raisins, Tangyuan, meat balls, peanuts, biscuits, jelly, candied fruit, walnut, pickles, frozen dumplings, almonds, salt, washing powder, solid beverages, cereals, such as pesticide particles Flake particles, short of powder and other items.
Features of Automatic Granule Packaging Machine
The potato chips packaging machine has the stable 10 structures, high-precision sensors, measuring the correct moment to achieve.
2. the potato chips packaging machine adopted the stepper motor, quiet operation, moves stability and long life.
3. measurement was based on the characteristics of fine-tuning the hopper door opening and closing speed to prevent the cards and nothing broken.
4. Calculation error: ± 1.5g
This set of unit
1, 10 computer combination Scales
3, Z-type material conveyor
4, vibration-Feeding
5, electronic platform scales
6, Product delivery
- Place of Origin: china
- Brand Name: Dongtai
- Model Number: ZX
Parameters of Automatic Granule Packaging Machine
| Name and Type | Granule Sachet Packaging Machine |
| Packing Capacity | 30-50 bag / min, According to product type and characteristics |
| Bag Size | (L) 100-300mm (W) 100-200 mm |
| Package weight | Up to1000 g / bag (max) |
| Sealing method | heat-sealing |
| Power supply | AC380V ± 10%, 3-phase 50Hz |
| Use Power | 2.0KW |
| Compressed air | 0.2m3 / min at 5-8 kgf / cm2 compressed air provided by the customer |
| Weight | 1200kg |
| Bag type | flat bags, side sealing, four sides sealing, zipper bags, stand-up pouches, etc. |
| Machine size | W × L × H 1340 × 1895 × 1435mm |
