- Place of Origin: china
- Brand Name: Dongtai
- Model Number: PTFM-4

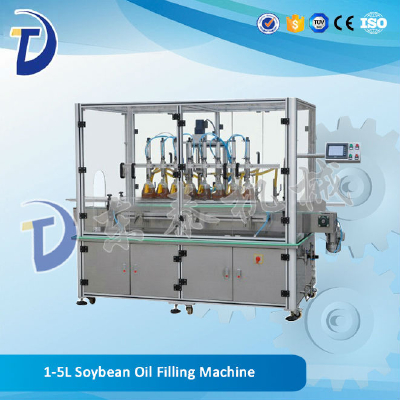

8 heads Filling Machine is very suitable for big-scale type oil production supplier, it not only assist production, but also upgrade production output for you.
Adopt PLC touch-screen and control system, controllable is stronger advance transcoding count device, power is more enough, filling is more stable, data transmission is more quick, so filling is more uniform than other factories.
Single heads with singe pump, power is more enough, running is more easier and smoother than other factories.
Intelligent mechanization, Quantitative filling, Widely Application
Adopted Triple Anti-dripping technology and device, save the lost of resources, fully automatic grade, save your labors, cost than other factories.
Equipped with 8 meters Frequency belt, auto-sensing-based sealer, vacuum anti-drip device, automatic induction, no bottles, no filling. Very practical. filling heads you could adjustable and any to be use.
Beautiful shape, high filling precision, convenient adjustment and easy to operate
Man-machine interface, directly set the filling volume, various filling packaging parameters.
Mechanical seals plus vacuum suck back mack a double anti-drip
Multiple push buttons, more safe
Easy to operation and running, any people can use it.
Filling range is wider, from 1 liter to 5 liter, if you need other filling range, like 1 liter to 20 liter, we provide customized service.
High-precision positive displacement flow meter quantitative accurate and reliable;
- Place of Origin: china
- Brand Name: Dongtai
- Model Number: PTFM-4
Specifications of Filling Machine
Machine Model
MTFM-8 Fully Automatic Grade Oil Filling Machine
Filling Head Count: 8 Heads
Filling Accuracy: ≦±1%
Filling Volume: 1-5 L ( routine filling volume range ); 1-20 L ( it
can be customized)
Body Materials: Stainless steel
Power: 2.5kw
Voltage: 220/380 v
Pressure; 0.8MP
Filling speed: 1200-1800 b/h
Machine Size: 1800x1200x1780mm
Note: special specifications can be customized
