Introduction

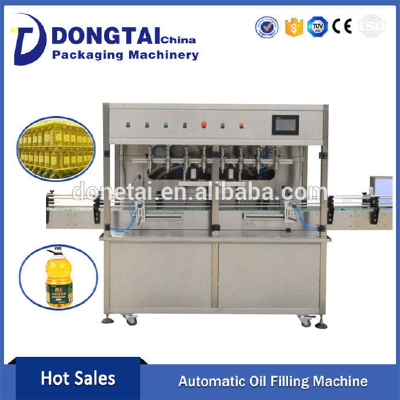

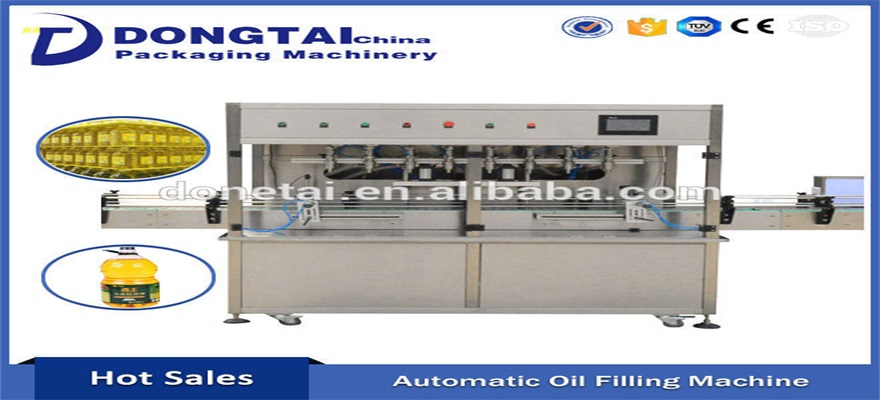

This oil filling machine is controlled by gowe digital and full automatic filling machine. It is measured in by Flowmeter. The speed of filling differs as per the volume to be filled as the machine is equipped with bottom-up fill assembly and adjustable volume control.
Application
This series of oil filling machine are widely used in filling a variety of oils and viscous liquids, such as peanut oil, blend oil, rapeseed oil and other edible oil filling.
Parameters of Oil Filling Machine
Model                               ZLDG-8
Filling head number   8
Filling speed                  1000-2000 (B / h)
Filling capacity            1-6 liters /0.1-1 liters (can be customized according to user requirements); ( 1-6L/ 0.1-1L/ >6L /  1-20L, etc.)
Filling accuracy           less than or equal to 0.5%FS.
Power source                220/380V
Air pressure                   0.5-1.0Mpa
Type                                  Full automatic Oil Filling Machine
Features of Oil Filling Machine
The adjustment in dosage is convenience and quick
Filling capacity: 1-6L/ 0.1-1L/ >6L /  1-20L, etc
The volume only need to be set on the touchscreen directly
We have added an automatic temperature-compensated system.
Flow meter type oil filling machine is adopting rotary encoder so that is more accurate.
Filling speed: instead of the traditional power delivery --  pressure artesian flow, our machine adopting frequency converter to adjust the speed of filling,the efficiency highly raised.
Filling speed of digital control oil filling machine can be arbitrarily adjusted on panel.
The adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touchscreen.The equipment carries on automatic conpensation system when error occurs.
Each filling head’s speed of gowe digital control oil filling machine can be set on touchscreen.
Conveyor belt be adjusted by frequency conversion
We manufacture these machines using quality measures as per standards. It is efficiently equipped with adjustable volume control and bottom-up filling assembly and filling speed differs with volume. This filling machine work on continous volumetric principle through PLC controlled by Flow meter
Standard Export Packing for Oil Filling Machine
A.Cover by PVC film fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Package Site of Oil Filling Machine Filling Line / Oil Filling Equipment
Our Services
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
Company Information
JINAN DONGTAI MACHINERY MANUFACTURING CO., LTD. is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Our business involves various markets all over the world, in many fields with our excellent product performance.Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.
