Machine: Automatic Powder Filling Machine

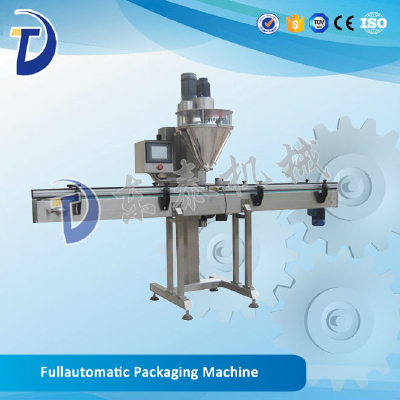

Model: ZX-F Full Automatic Powder Filling Packaging Machine
Brief Instruction of Automatic Powder Filling Machine
powder filling machine was designed for automatic canned feeding, weighing, filling and failed packs detect & delete. It’s suitable for packaging powdery & grainy product, such as: milk powder, monosodium glutamate, solid beverage, white sugar, dextrose, fodder, coffee power, solid medicament, powdery & grainy additive, dyestuff, etc.
Features of Automatic Powder Filling Machine
Automatic Powder Filling Machine is made of stainless steel material except of motor, in particular the application of GMP, food sanitation certification, and suitable for the amyctic materials.
Touch-screen man-machine interface: work stability, anti-interference, high-precision weighing, easy and intuitive to operate . Stepless adjust the packaging weight. Change the working parameter at any time, easy to control.
Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance.
Stirrer of small powder filling machine is driven by the Taiwanese motor reducer: low noise, long life, maintenance-free life.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material .
Side-open of the hopper of powder filling machine is made of stainless steel and is consist of glass,damp.
The movement of materials is at a glance through the glass,air-sealed to avoid the leak, and the discharge material mouth with the dust collector to protect the workshop dnvironment .
- Place of Origin: china
- Brand Name: Dongtai
- Model Number: zx-f
Specification of Automatic Powder Filling Machine
Metering mode: Auger rotation filling (Applicable to canned packing for granule or powder)
Size of the container: Cylindrical containerφ50—200MM High 50-350MM
Packing weight: 10-5000g (The screw attachment is to be changed)
Packaging accuracy: ≤ 100g, ≤±1g; >100g,≤±1%
Filling rate: 10-50 cans/min
Power supply : 3P 380V/1P 220V 50~60HZ
Total weight: 300kg
Overall Dimensions: 2500×800×2200MM
Hopper Volume: 50L
